Semi-trailer chassis accessories: suspension, axle, outriggers, brake chamber
1. Suspension
Suspension connects the frame to the axle, responsible for
Load bearing, shock absorption, distribution axle load
, divided into
Mechanical steel plate suspension
(African main force) and
air suspension
。

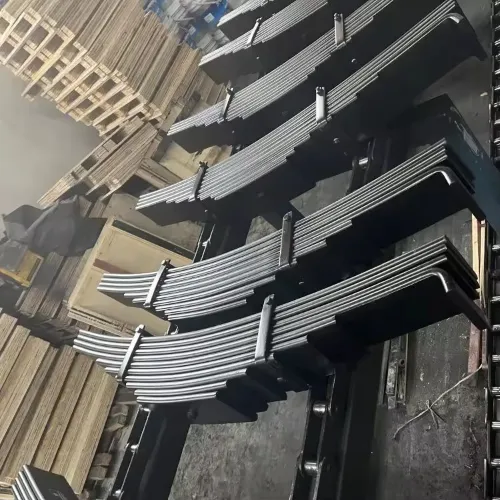

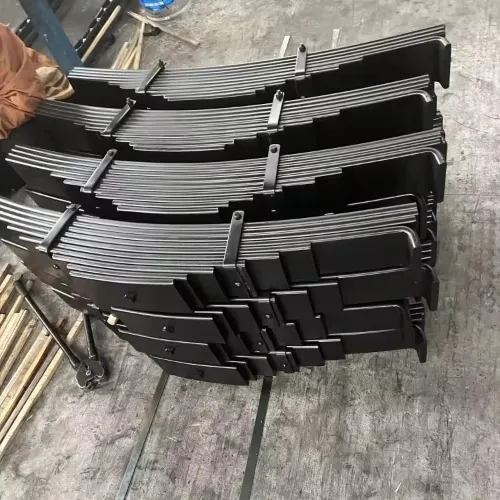

Mechanical plate suspension (multi-leaf spring)

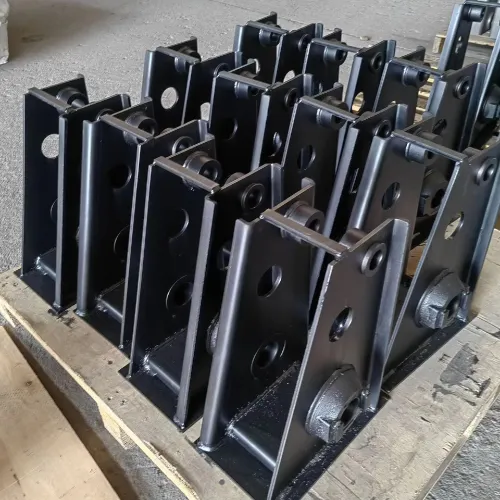

Structure: Leaf spring + balance arm + bracket. The leather is solid and durable, the accessories are cheap, the maintenance is simple, and the impact resistance is strong. Applicable scenarios: skeleton car, flat trailer, African dirt road, sand and gravel road, construction site heavy load, container trunk line, mine infrastructure transportation; the first choice for large-scale procurement of fleets. Disadvantages: Shock absorption is hard, and precision and fragile goods are easily damaged.Air suspension (airbag suspension)

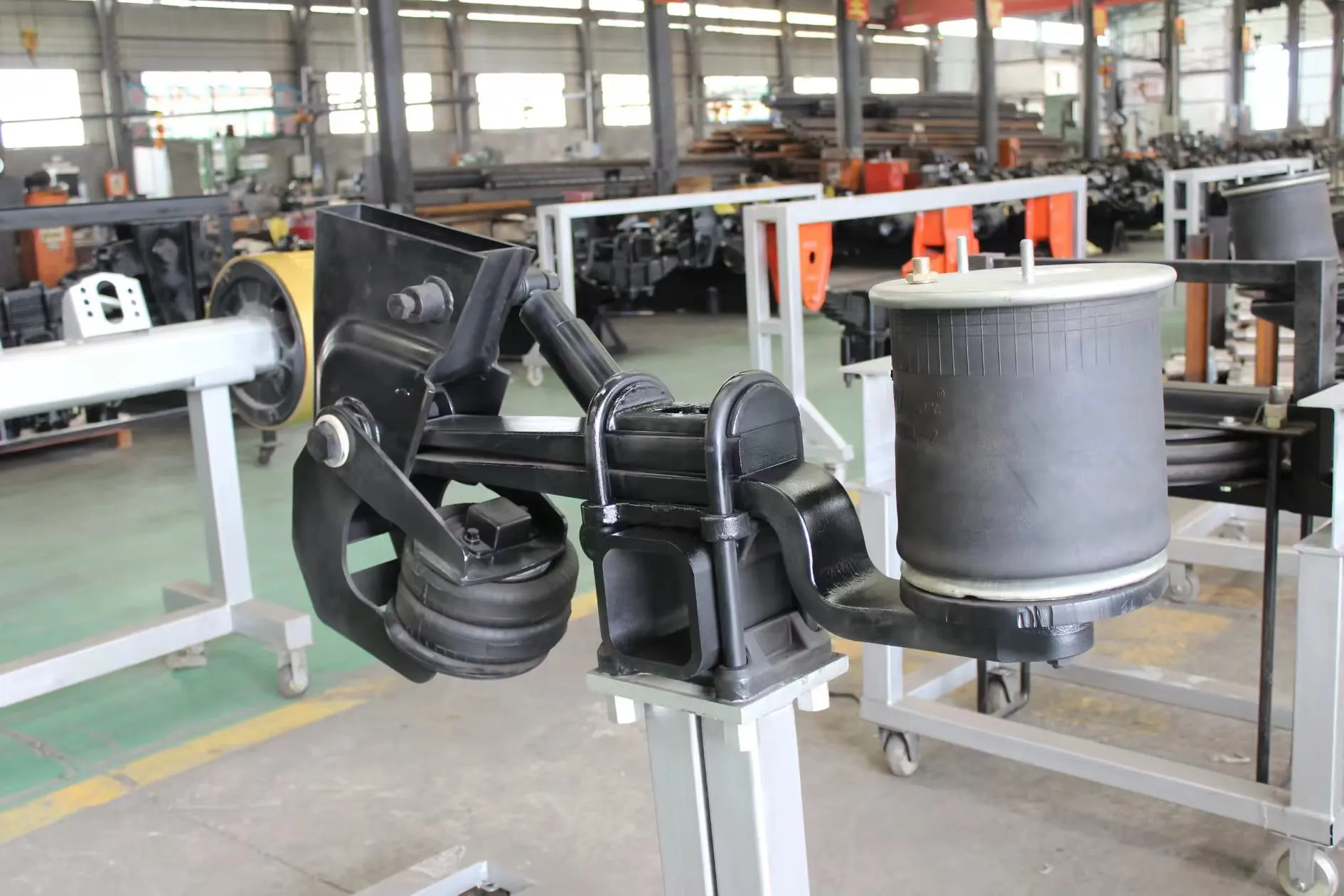

Structure: Rubber airbag + shock absorber + control valve. Airbag cushioning, adjustable body height, soft shock absorption, protect goods and reduce tire wear. Applicable scenarios: side curtain semi-hanging, precision equipment, tray general merchandise, valuable packaged goods, paved highway long-distance trunk line. Disadvantages: high price, airbag afraid of sharp gravel, few maintenance accessories in remote areas.
2. Axle (axle)
Semi-trailer support bridge, carrying the weight of the whole vehicle, built-in brake drum/disc, wheel hub bearings, tires are installed at both ends, which is the core load-bearing part of the chassis. Mainstream specifications:
13 tons, 16 tons
(African three-axle trailer standard), sub-drum brakes, disc brakes. Uses & Scenarios
Skeleton/flatbed trailer: 13-ton drum axle, port, West Africa cross-border container transportation, strong bearing capacity, high temperature resistance, spare parts popularization.
Side curtain semi-hanging: optional 13-ton disc axle, more stable braking, suitable for long-distance logistics of general merchandise pallets.
优势：重载不变形，制动稳定；可配套 ABS。 局限：超载 + 烂路会加速轴承、刹车鼓磨损。
3. Landing Gear (Horse Leg)
Installed on the front end of the trailer,
Support the front weight of the trailer after the tractor is unhooked
, convenient for dumping, loading and unloading, and parking in the yard. Mainstream of the African market:
28 ton two-speed manual outriggers
, Fast gear can be quickly lifted and lowered without load, and slow gear can bear heavy load. Use & Scenario Port yard, inland freight yard, warehouse throwing and hanging operation; container skeleton car, flat plate, side curtain semi-hanging are universal. Slow gear for heavy load landing, fast gear for empty load collection; suitable for cross-border logistics fleets with frequent picking and hanging.
优势：承载力大，结构简单，故障率低。 注意：行驶前必须完全收回，不能落地行车。

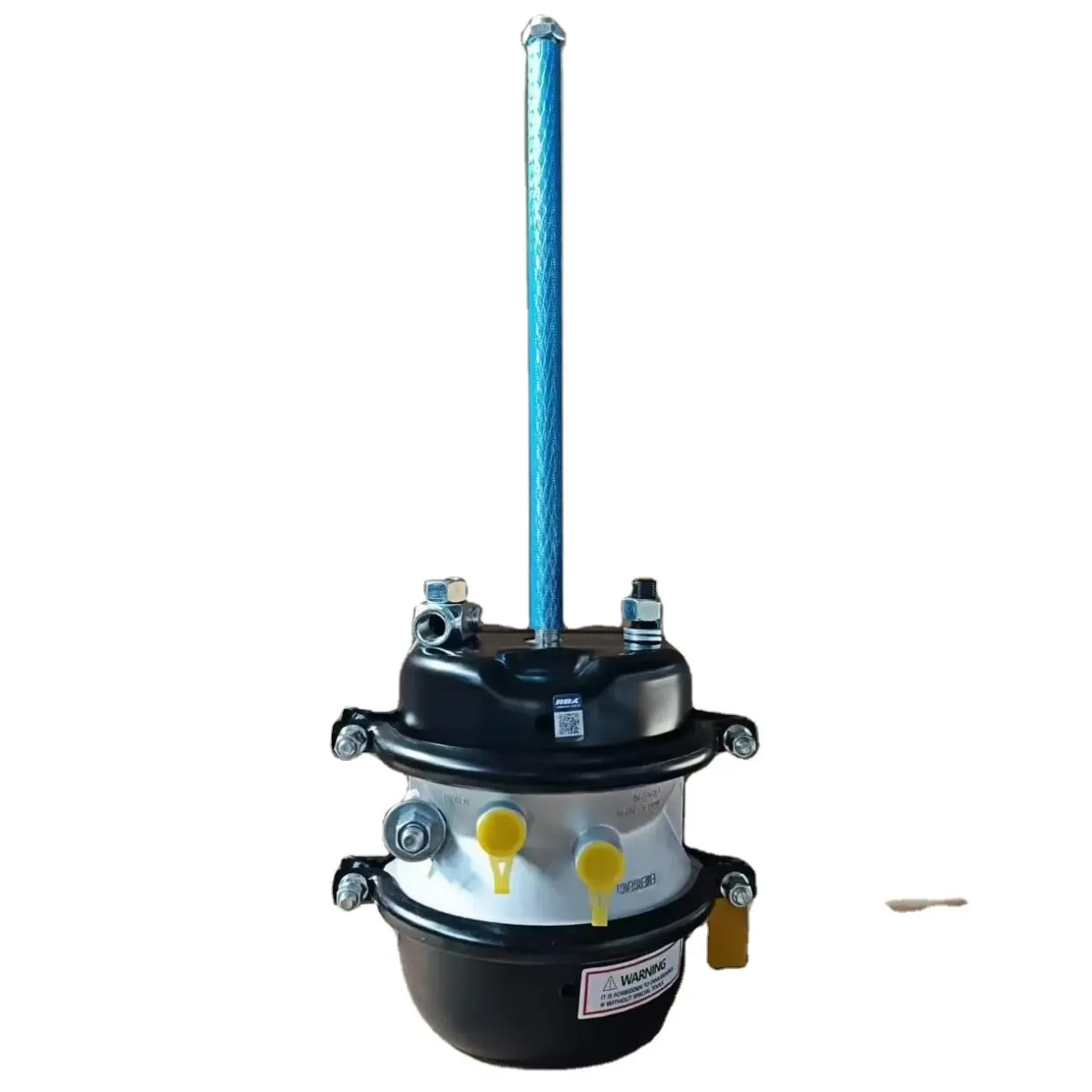

4. Brake chamber (air chamber)
Trailer pneumatic brake executive part, using the air reservoir to compress the air to push the brake cam to achieve wheel braking. Divided into single air chamber, spring energy storage double air chamber (with parking brake). Use & Scene All semi-trailers are standard (skeleton, flat plate, side curtain). Driving brake + parking break-off brake; long-distance trunk lines, mountainous sections, parking lock wheels to prevent car slipping. African long-distance freight priority to use energy storage double air chamber, gas break automatic lock wheel, higher safety.
优势：响应快，配合整车气刹系统。 维护要点：定期排水，高温、潮湿环境容易锈蚀膜片。
Suspension, axle, outriggers, air chamber | Uses and functions
1. Suspension
effect
Connect the frame and the axle, bear the full load of the trailer, buffer the road vibration, distribute the weight of each bearing evenly, and reduce the damage to the frame, goods, and axle tires caused by the impact.
Uses & Scenarios
Mechanical steel plate suspension: skeleton car, flat trailer, cross-border transportation of African sand and gravel roads, construction sites, and containers, impact resistance, easy to purchase and repair parts.
Air suspension: side curtain semi-hanging mainly, paving long-distance trunk lines, soft shock absorption, protecting pallets, packing fragile goods, reducing tire wear.
2. Axle Axle
effect
Trailer core load-bearing components, bearing the load of the vehicle; integrated wheel hub, brake drum/disc, transmission of braking force, support tire rotation.
Uses & Scenarios
13 tons/16 tons drum axle is the skeleton, flat trailer standard, used for port short down, West Africa container trunk transportation, heavy load stability, spare parts popularization; disc axle braking response faster, more for side curtain semi-hanging general merchandise long-distance distribution.
所有半挂车都必须依靠车桥承载重量与实现车轮制动。
3. Landing Gear
effect
: After the trailer is disengaged from the traction head, support the front end weight of the trailer to keep the trailer standing smoothly and upright; complete throwing, loading and unloading, and parking in the yard. Two-speed structure: fast gear rises and falls quickly without load, and slow gear bears heavy load.
Uses & Scenarios
Port yard, inland warehouse, freight yard throwing and hanging operation, skeleton/plate/side curtain semi-hanging universal. Suitable for cross-border logistics fleets with frequent picking and hanging. Must be fully retracted when driving.
4. Brake Chamber
effect
: The actuator of the pneumatic brake, the compressed air pushes the internal diaphragm, drives the brake cam, and realizes the driving brake; the energy storage double air chamber has its own spring parking brake, and the air-breaking automatic locking wheel prevents the car from slipping.
Uses & Scenarios
All semi-trailers are standard, container trunk lines, mountain transportation, and yard parking. West African long-distance freight recommends energy storage double air chambers to improve the safety of ramp parking; regular maintenance to avoid corrosion of diaphragms in humid environments.
