Removable low plate
Detachable gooseneck low flatbed semi-trailer, product details
Product introduction
Gooseneck Detachable Lowbed Trailer is specially used for transporting large construction machinery and heavy equipment. The gooseneck can be disassembled separately. After the tractor is separated, the equipment can be directly driven up and down from the front end of the trailer without additional ramps, making it very convenient to load and unload large excavators, drilling rigs and loaders. The cargo platform of the whole vehicle has a low height from the ground and a stable center of gravity. It is suitable for large and heavy-duty transportation. It is commonly used in mines and infrastructure projects in Africa and supports customization.
core material
Main beam: Q345B high-strength carbon steel, thickened I-beam welded
Baseplate: patterned steel plate, wear-resistant and compression-resistant
Removable gooseneck assembly: welded with thick steel plate, high load-bearing strength
Surface treatment: sandblasting rust removal, epoxy primer + anti-corrosion topcoat, anti-sun exposure and anti-corrosion
Car body structure

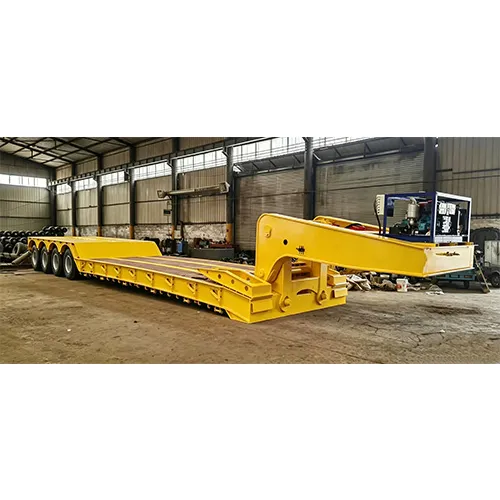

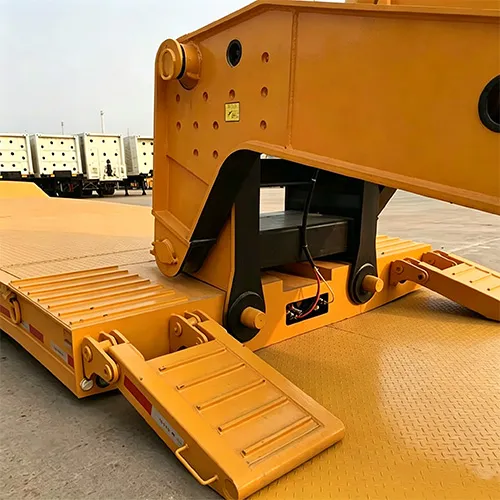

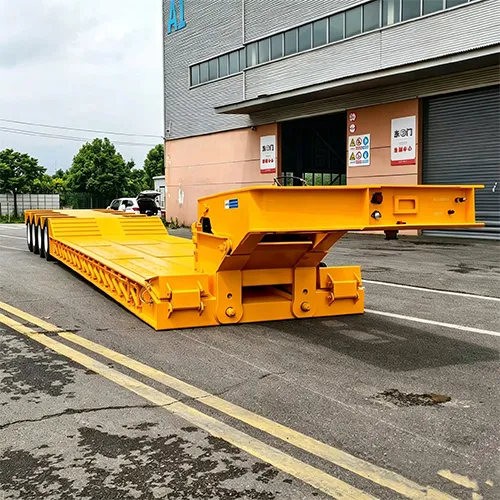

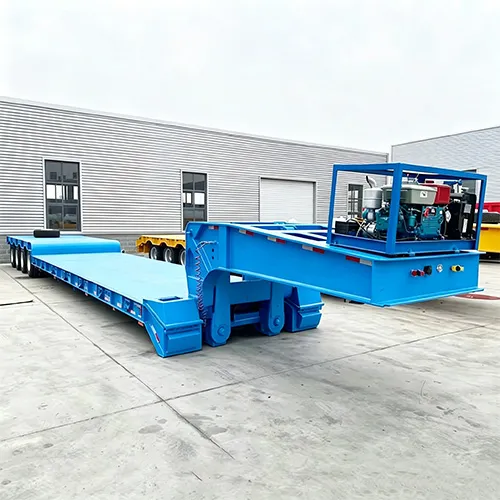

Removable gooseneck
: Connect the main frame through a hydraulic/mechanical lock, and separate the gooseneck from the trailer after unlocking; the tractor takes away the gooseneck, the front end of the trailer lands, and the equipment drives into the cargo platform by itself.Low cargo platform design, small ground clearance, transportation of ultra-high equipment is not easy to limit height.
Reinforced through the main beam, multi-beam reinforcement, anti-twisting, heavy load without deformation.
Both sides are equipped with strapping rope hooks for easy fixing of heavy equipment.
Optional multi-axle structure: 3 bridges, 4 bridges, 5 bridges, according to the load selection.
Common specifications
Load optional: 60 tons/80 tons/100 tons /120 tons
Cargo platform length: 9m - 13m, can be lengthened and customized
Suspension: Mechanical spring suspension/Hydraulic suspension optional
Axle: 13-ton, 16-ton heavy axle
Applicable goods
✅ Excavators, loaders, road rollers, drilling rigs, large mining machinery ✅ large generator sets, construction machinery components, heavy equipment ❌ bulk powder, liquid oil (not suitable for tank media)
Product advantage
Easy loading and unloading
: The gooseneck is disassembled, and the equipment is directly driven onto the trailer, eliminating the need for large-scale hoisting equipment and resulting in high construction site operation efficiency.low cargo platform
The equipment has a lower center of gravity and more stable driving, making it suitable for the transportation of ultra-high and large items.Heavy duty sturdy
High-strength steel girder with strong load-bearing capacity, suitable for bumpy road conditions in African mines.Safe and reliable
The gooseneck lock has a firm structure and accurate positioning to prevent loosening during transportation.Simple maintenance
Mainstream accessories, easy to purchase and replace locally.Support customization
Load, number of bridges, size of cargo platform, hydraulic system and color can be adjusted as needed.
optional accessories
Hydraulic removable gooseneck, mechanical lock gooseneck, spare tire frame, tool box, widened outriggers, ABS braking system, reinforced rope hook
Example of technical parameters (3-bridge removable gooseneck low plate)
型号：Detachable Gooseneck Lowbed Semi Trailer
Load capacity: 60 tons
Material: Q345B high strength steel
Cargo platform: patterned steel plate
Axle: 316 tons
Suspension: Mechanical spring suspension
Brake: Break off brake + ABS optional
Gooseneck: Hydraulic removable
Precautions for use
The gooseneck removal operation must be operated on a flat and solid ground to prevent the trailer from tilting.
Equipment up and down the trailer, slow, evenly placed to ensure that the center of gravity.
Before each use check gooseneck latch, hydraulic piping, weld crack.
It is strictly forbidden to overload to avoid deformation of the main beam caused by long-term overweight.
