Product introduction
Powder tank trailer (also called bulk powder material tanker), specially used for airtight transportation of dry powder materials: bulk cement, fly ash, limestone powder, mineral powder, gypsum powder, etc. Relying on air compressor blowing fluidization, the powder is unloaded from the tank by air pressure, without manual bagging, with fast unloading speed and less dust, which is very suitable for infrastructure projects, cement plants, and mining projects. There is a great demand for road projects in Africa.
Tank material
Main body:
Q345B high strength carbon steel
You can also choose Q235B.Cylinder plate thickness: 5mm, head 6mm;
Internal fluidized bed: polymer breathable canvas + fluidized bracket, which is the core component of powder discharge;
External sandblasting rust removal, epoxy anti-corrosive paint, anti-sun exposure, rain corrosion.
tank structure

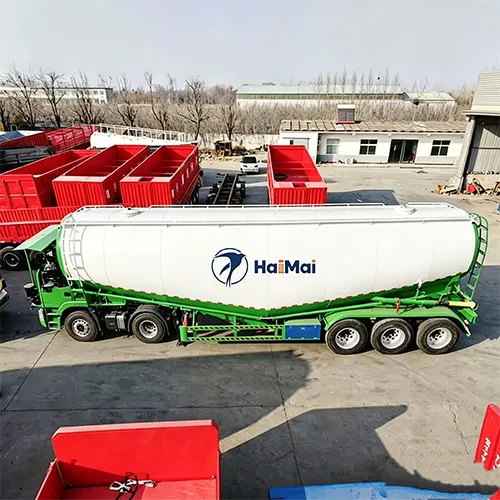

Horizontal cylindrical tank body, internal compartment (single/double/three), can transport different powders at the same time;
Bottom arrangement in the tank
Fluidization device
: Tilt the fluidized bed, the compressed air passes through the breathable layer, making the powder fluidized and discharged outward by pressure;Top: multiple feeding ports (manholes), safety valves, pressure gauges;

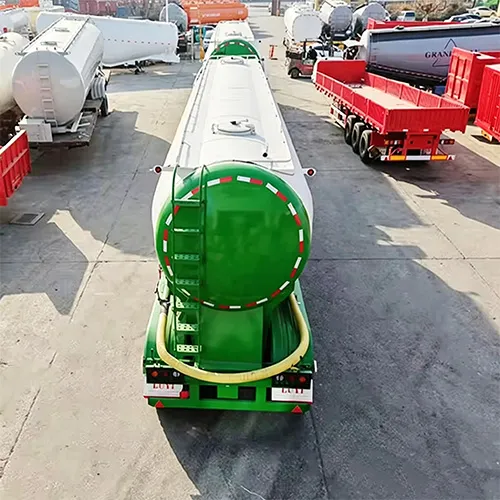

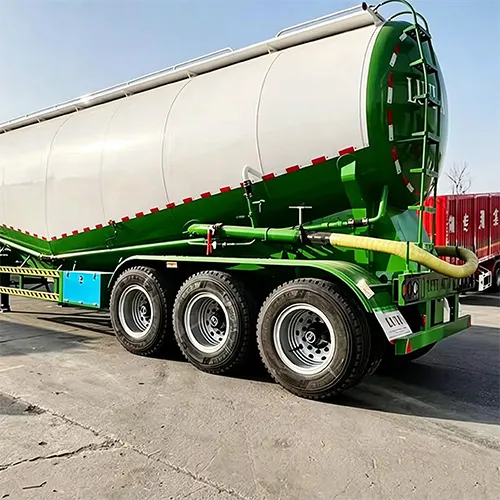

Tail: discharge pipe, butterfly valve, exhaust valve;
Equipped with air compressor system, diesel engine-driven air compressor (can be unloaded without external power supply, rigid demand for African construction sites).
Working principle
The truck-mounted air compressor generates compressed air, which is fed into the fluidized layer at the bottom of the tank. The air penetrates the powder evenly, reducing the friction between the powder particles, and the powder becomes a fluid-like state. After the pressure is increased in the tank, the discharge valve is opened, and the powder is transported along the pipeline to the silo, with a vertical transportation height of 15 to 30 meters.
Common volume specifications
30M3/35m3/40m3/45m3/50m3/55m3, can be customized tank size.
Applicable materials
✅ Bulk cement, fly ash, limestone powder, heavy calcium powder, gypsum powder, mineral powder
❌ Moist agglomerated powder, large-grained sand and gravel, strong viscous materials
Key selling points (for African customers)
save labor
: No need to pack and unpack, airtight transportation, reducing labor costs and no dust pollution;Independent power
: Diesel air compressor version, the unloading can be completed without power at the construction site;High strength tank
Q345 carbon steel tank is resistant to bumps and suitable for poor road conditions in Africa;High discharge efficiency: the discharge speed is 1.2 to 2.5 tons/minute, with less residual material.
Simple maintenance: fluidized cloth, valves, and air compressor parts are easy to replace locally.
Support customization: number of warehouses, length of discharge pipe, brand of air compressor, frame color, suspension optional.
Supporting Systems & Optional Accessories
Power system: diesel engine driven air compressor/power take-off air compressor
Suspension: Mechanical suspension (mainstream in Africa, cost-effective), air suspension optional
Axle: 13 tons/16 tons axle, ABS braking system optional
Other accessories: pressure gauge, safety valve, quick connector, unloading hose, ladder, protective fence, spare tire frame
Example of technical parameters (40m ³ powder tank semi-trailer)
Volume: 40 cubic meters
Material: Q345B carbon steel, cylinder 5mm, head 6mm
Warehouse body: double warehouse design
Discharge method: pneumatic fluidized discharge
Working pressure: 0.2MPa
Conveying vertical height: ≤25m
Suspension: Mechanical spring suspension
Axle: 313 tons axle
purpose
Relying on the closed tank + the fluidized air cushion in the tank, compressed air is introduced to fluidize the dry powder material.
Pneumatic conveying dry powder
, The whole process is closed and unloaded, without dust or sprinkling, reducing material loss. It is specially designed to transport dry and liquid powdery bulk materials, and cannot pull wet agglomerated materials, which is easy to block pipes.
application scenario
Infrastructure industry
Bulk cement, fly ash transportation, supply of concrete mixing plants, road construction, housing, bridge projects, African infrastructure projects are in great demand.Building materials industry
: lime powder, gypsum powder, heavy calcium stone powder and other building materials powder transfer.Mining industry
Transportation of mineral powder and dry slag powder.target customer
Building materials traders, concrete mixing plant, engineering general contractor, mine logistics company.
核心优势：密闭输送，卸料快，残留粉料少，适合大批量干粉长途运输。
