Balustrade semi-hanging
Barrier semi-hanging, product details
Product introduction

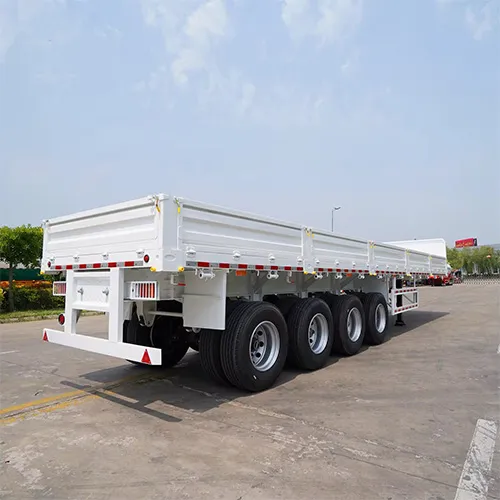

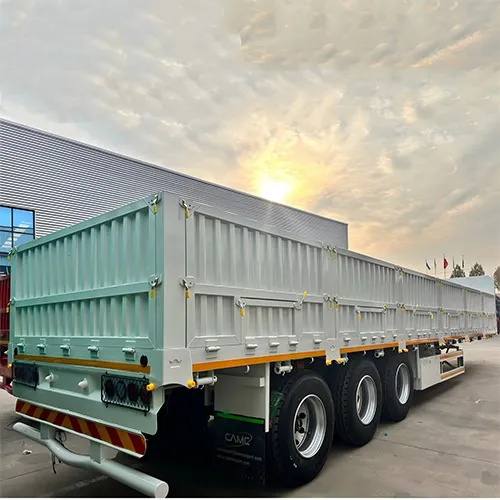

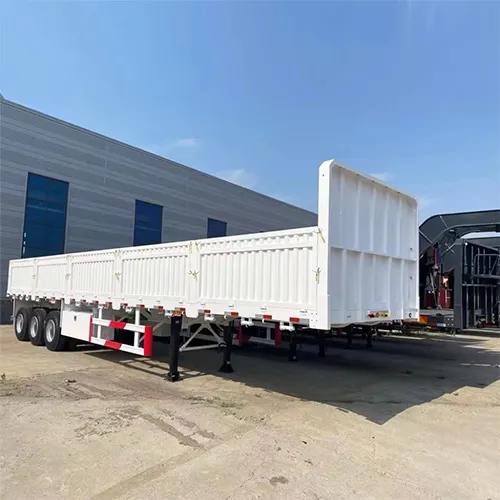

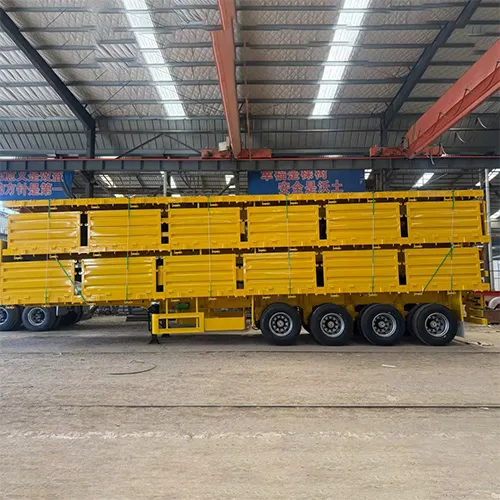

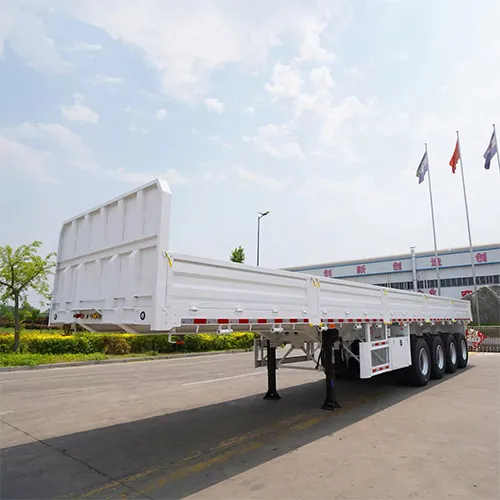

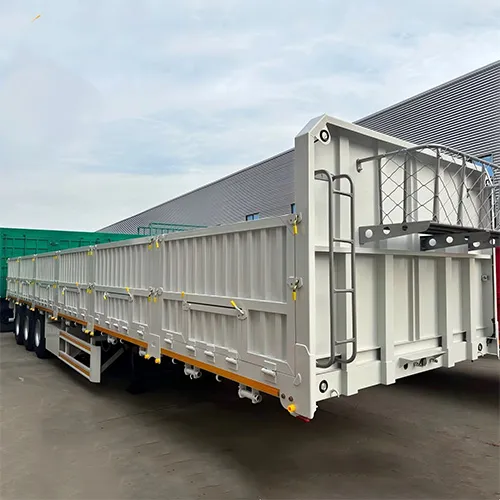

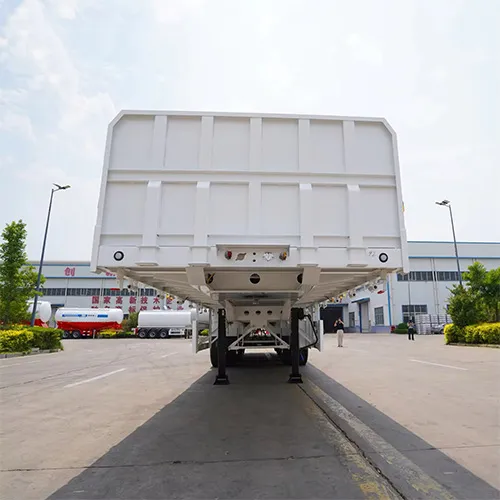

Barrier semi-trailer with detachable railings on the side, mainly transporting sand and gravel, building materials, bagged goods, steel, agricultural products and other bulk and general goods. The railings around the cargo box can enclose the goods and prevent them from falling during transportation; the railings can be opened to facilitate forklift loading and unloading. Strong versatility, widely used in African infrastructure, farms, and building materials markets, and supports high customization of size and railings.
core material
Main beam: Q345B high-strength carbon steel, thickened I-beam welded
Baseplate: patterned steel plate, wear-resistant and compression-resistant
Barrier: carbon steel bending plate, can be thickened reinforcement
Surface treatment: sandblasting rust removal, epoxy primer + anti-corrosion topcoat, anti-sun exposure and rust protection

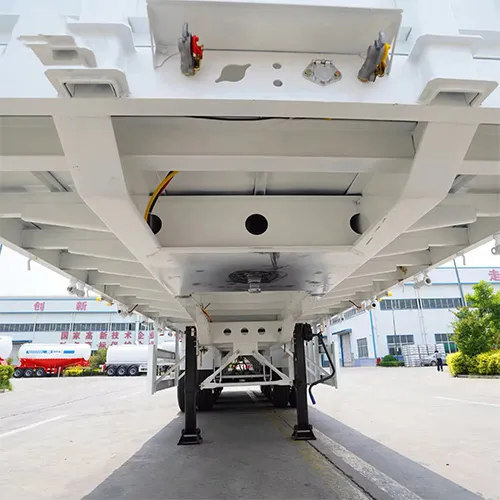

Car body structure
Heavy straight beam main beam, multi-beam reinforcement, anti-twisting, heavy load is not easy to deform;
The fencing is welded around, and the fencing adopts a hinge + lock structure, which can be opened;
The sides and tail railings can be opened separately for easy loading and unloading.
The body is reserved for binding rope hooks for easy fixing of goods.
Optional 2-bridge and 3-bridge configurations can be selected according to load requirements.
Common specifications
Dimensions: 13000mm2500mm, length and height of the fence can be customized
Barrier height: 600mm/800mm/1000mm optional
Rated load: 30 - 50 tons
Suspension: Mechanical spring suspension (mainstream in Africa), optional air suspension
Axle: 13-ton axle
Applicable goods
✅ Gravel, gravel, muck ✅ bagged cement, grain, fertilizer ✅ steel, pipes, profiles ✅ all kinds of building materials, engineering general ❌ liquid oil, bulk powder (tanker)
Product advantage
Multifunctional universal
: The fence is enclosed to prevent bulk goods from falling, and the fence is opened to facilitate forklift loading and unloading;Rugged
High-strength steel main beam, suitable for bumpy dirt roads in Africa.Simple maintenance
Simple structure, easy to find local parts, low maintenance cost.Flexible customization
: The height and thickness of the fence, the length and color of the whole vehicle can be adjusted as needed;cost-effective
One car is multi-purpose, and it is the first choice for general cargo transportation.
optional accessories
ABS braking system, spare tire frame, toolbox, reinforced rope hook, thickened fence, LOGO spraying
Technical parameter example (three-bridge fence semi-hanging)
型号：Side Wall Semi Trailer
Size: 13m 2.5m
Height of fence: 800mm
Material: Q345B high strength steel
Axle: 313 tons
Suspension: Mechanical spring suspension
Tires: 12.00R22.5
Precautions for use
Loading bulk goods should not be too high or too wide to avoid spilling the goods.
Close the fence lock and check whether the hinge is loose before driving.
The goods are placed evenly, not biased;
Prohibition of overloading, regular inspection of the main beam, railing weld.
