侧帘半挂

简短描述:

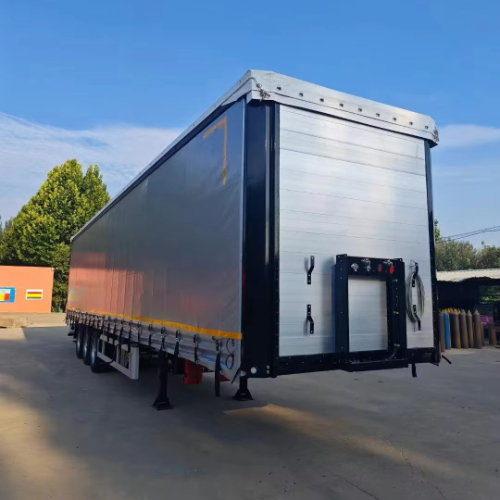

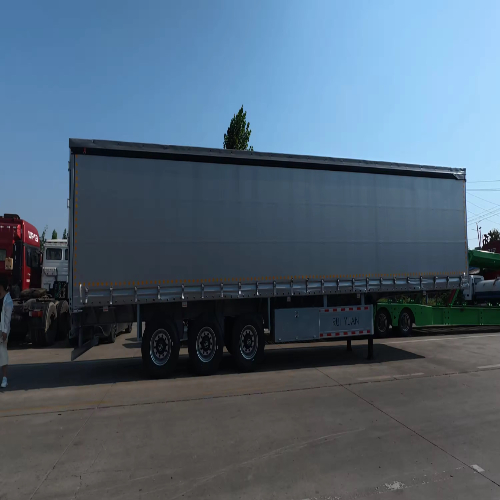

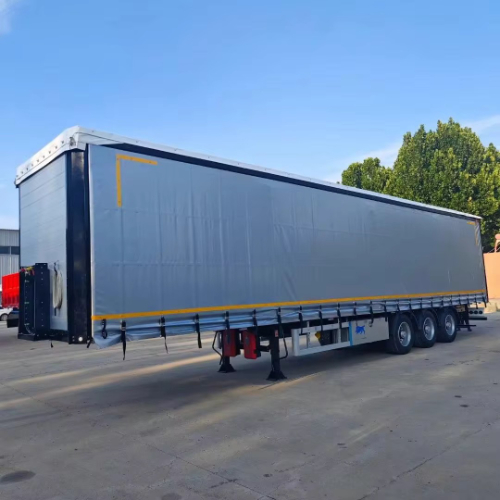

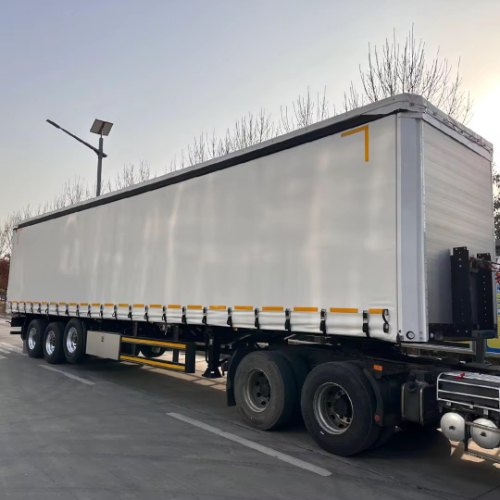

侧帘半挂,也叫拉帘半挂,结合厢式车防雨防尘保护 + 平板车侧面全开装卸的优势。车厢有刚性车顶、前挡板、后门,两侧不是钢板墙,而是可沿轨道滑动的加厚 PVC 防水帘布,拉开侧帘后,叉车可以从车厢全长任意位置侧面装卸货。...


  • 外形尺寸: 12500mm×2500mm×3000mm(可选)
  • 额定载重量: 30–80 吨
  • 主梁: 重型高耐久工字梁;采用高强度 Q345 钢,自动埋弧焊焊接。上翼板 14mm,宽度 140mm;中翼板 8mm,高度 500mm;下翼板 16mm,宽度 140mm(可选)
  • 侧梁: 18 号槽钢(可选)
  • 横梁: 12 号槽钢(可选)
  • 上侧梁: 14 号槽钢(可选)
  • 承重梁: 9 根 6 号槽钢
  • 立柱: 厚度 8mm(可选)
  • 底板: 4mm(可选
  • 厢板: 高度 2400mm,厚度 3mm(可选)
  • 厢门: 每侧 4 扇门,每扇门配 3 根锁杆(可选)
  • 门洞尺寸: 1.8 米(可选)
  • 车轴: 3 轴,富华 FUWA 品牌,13 吨级(可选)
  • 悬挂: 美式机械悬挂(可选)
  • 轮胎: 12R22.5,共 12 条(品牌及规格可选)
  • 牵引销: 2 英寸 / 3.5 英寸,嵌入式 / 焊接式牵引销
  • 制动系统: 威伯科 WABCO RE6 继动阀;T30/30 弹簧制动气室;40L 储气筒
  • 灯光系统: 8 个 LED 侧灯、2 个尾灯、2 个示宽灯
  • 喷漆工艺: 整车车架喷砂除锈,1 道防锈底漆,2 道面漆
  • 配件: 标准工具箱 1 个、1/2 个备胎架、摇柄 1 个、轴头扳手 1 把、侧灯 4 个、尾灯 2 个

产品详情

信息

侧帘半挂 产品详情

产品简介

侧帘半挂车,侧面采用可滑动防水篷布帘,无需拆装栏板。侧面可完全打开,方便叉车从侧面装卸货物,适合托盘货、纸箱、袋装货物等。篷布防水防尘,保护货物不受雨淋日晒。在非洲商贸、建材、食品运输场景很实用,整车尺寸、帘布高度可定制。

核心材质

  • 主梁:Q345B 高强度碳钢,加厚直梁焊接

  • 底板:花纹钢板,耐磨抗压

  • 侧帘框架:碳钢折弯型材

  • 侧帘布:PVC 防水耐磨篷布

  • 表面处理:喷砂除锈,环氧底漆 + 防腐面漆,抗暴晒防锈

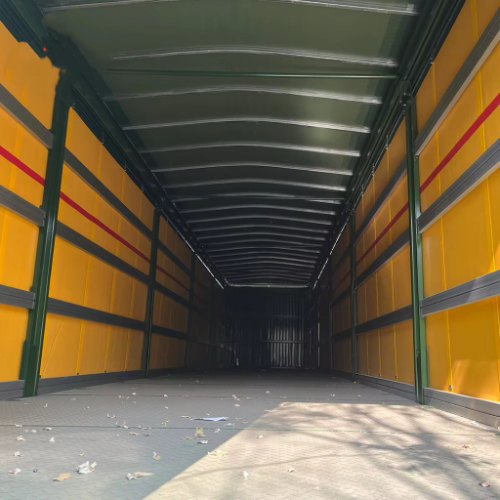

车体结构

  1. 重型直梁主梁,密集横梁加固,抗扭曲,重载不变形;

  2. 两侧滑动式 PVC 侧帘,轨道支撑,可左右推拉开启;

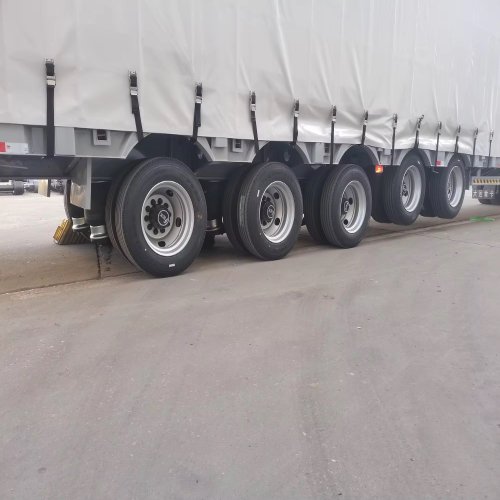

  3. 帘布配有拉紧锁扣,锁紧后防雨防尘;

  4. 前端和尾部带有固定挡板;

  5. 车身带有捆绑绳钩,方便固定托盘货物;

  6. 可选 2 桥、3 桥配置。

常用规格

  • 外形尺寸:13000mm×2500mm,长度可定制

  • 帘布高度:2.4m~2.8m 可选

  • 额定载重:30–50 吨

  • 悬架:机械弹簧悬架(非洲主流),可选空气悬架

  • 车桥:13 吨车桥

适用货物

✅ 托盘货物、纸箱、袋装粮食、化肥 ✅ 五金建材、包装工业货品 ✅ 需要防雨防尘的各类普货 ❌ 大块尖锐钢材、高温物料、散装砂石(容易划破篷布)



产品优势

  1. 装卸高效:侧帘可完全滑开,叉车侧面直接装卸,不用从尾部进叉;

  2. 防雨防尘:PVC 篷布保护货物,不受雨水、沙尘影响;

  3. 货物防护:防止运输途中日晒雨淋造成货品损坏;

  4. 操作简单:推拉式侧帘,单人即可完成开合;

  5. 支持定制:整车长度、帘布高度、LOGO 印刷、颜色均可按需调整。

可选配件

ABS 制动系统、备胎架、工具箱、加固绳钩、加厚 PVC 侧帘、LOGO 喷涂

技术参数示例(三桥侧帘半挂)

  • 型号:Curtain Side Semi Trailer

  • 尺寸:13m × 2.5m

  • 侧帘高度:2.6m

  • 材质:Q345B 高强钢,PVC 防水篷布

  • 车桥:3×13 吨

  • 悬架:机械弹簧悬架

  • 轮胎:12.00R22.5

使用注意事项

  1. 装载尖锐物品时做好防护,避免划破 PVC 侧帘;

  2. 行车前务必拉紧侧帘锁扣,防止高速行驶时篷布晃动破损;

  3. 货物均匀摆放,禁止偏载;

  4. 定期检查侧帘轨道、滑轮与锁扣,及时更换损坏配件。
